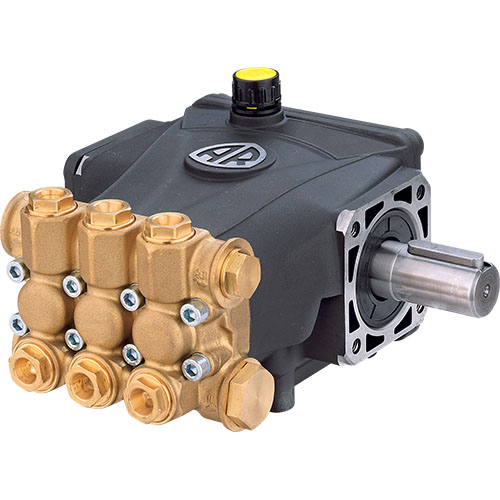

The Annovi Reverberi RCA3G25N, N version 24mm solid shaft triplex pump is ready for direct or pulley driving. This pump is manufactured with a brass pump head suitable for a wide range of conditions. The RCA3G25N can produce up to 2500 Max PSI, 3 Max GPM, and is designed to operate at 1750 RPM. Constructed with frictionless aluminum connecting rods and ceramic pistons, the RCA3G25N weighs in at 10 lbs and boasts a sleek compact design.
Uncategorized
Annovi Reverberi AR RCA3G25N horizontal gas engine triplex plunger pump is rated up to 3 GPM at max 2500 PSI spins a 24mm solid shaft at 1750 RPM using a ½”F inlet and ?”F discharge thread.
+ Free Shipping| Weight | 10 lbs |
|---|---|
| Pump Orientation | Horizontal |
| Max (l/m) | 11.4 |
| Max RPM | 1750 |
| Weight (lbs) | 10 |
| Bore Diameter (mm) | 18 |
| Capacity (oz) | 9.81 |
| Shaft Diameter | 24mm |
| Series | 320 (RCA) |
| Head Material | Brass |
| Pump Head Material | brass |
| Connecting Rods | aluminum |
| Max GPM | 3 |
| Max L/Min | 11.4 |
| Max PSI | 2500 |
| Max Bar | 170 |
| Power EBHP | 5.1 |
| Bore Dia mm | 18 |
| Stroke mm | 8.2 |
| CSID Stamp | 6 |
| Inlet (in) | 1/2" F |
| Outlet (in) | 3/8" F |
| Max Temp | 140° F |
| Oil Capacity (oz.) | 9.81 |
| RPM | 1750 |
| Shaft Size | 24mm |
| Shaft Version | N, Natural, Neutral Shaft |
| Shaft Type | Solid |
| Market | Commercial |
| Pump Type | Tri-Plex Plunger |
| Weight | 10 |
