Spray Guns Parts
76 products available
The spray gun is the control point of the whole rig — hose in, lance or nozzle out, trigger in your hand all day. Most commercial guns share a common fitting pattern (3/8" FPT inlet, 1/4" FPT outlet), which is why lances and accessories swap across brands, but the gun's max PSI and GPM ratings must meet or exceed your pump's output. The choice that trips buyers up most is weep vs. non-weep: weep guns let a small continuous flow pass with the trigger released to guard against freeze-ups, while non-weep guns flow only when squeezed.
(10)GUN,SPRAY,ADJUSTABLE,RED
SKU: 7261
(10)GUN,SPRAY,ADJUSTABLE,RED is an adjustable-pattern spray gun — twist the head from jet to fan without swapping tips. SKU 7261.
(10)ST-3600 21 GPM 8700 PSI S.S. SPRAY GUN 1/2" FP
SKU: 6714
(10)ST-3600 21 GPM 8700 PSI S.S. SKU 6714.
(10)YG1635 RB65 WASH DOWN GUN ADJUSTABLE 16 GPM
SKU: 7051
(10)YG1635 RB65 WASH DOWN GUN ADJUSTABLE 16 GPM is a trigger spray gun (YG1635) rated 16 GPM. SKU 7051.
(100)DG4000TS18 COMPLETE SPRAYGUN FOR 18' TELE-WAN
SKU: 6344
(100)DG4000TS18 COMPLETE SPRAYGUN FOR 18' TELE-WAN is a trigger spray gun (DG4000TS18). SKU 6344.
(100)ST-510 POLY TRIGGER GUN 18.5GPM @ 365 PSI
SKU: 3826
(100)ST-510 POLY TRIGGER GUN 18.5GPM @ 365 PSI is a trigger spray gun (ST-510) rated 18.5 GPM at 365 PSI. SKU 3826.
(15) SPRAY GUN SG35 EASY HOLD 5,000PSI @ 12GPM (BLUE)
SKU: 7396
(15)SPRAY GUN SG35 EASY HOLD 5,000PSI @ 12GPM (BL is a trigger spray gun (SG35) rated 12 GPM at 5,000 PSI. SKU 7396.
(15)DCG4000FSC COMPENSATING SPRAYGUN FOR NEW STYLE
SKU: 1781
(15)DCG4000FSC COMPENSATING SPRAYGUN FOR NEW STYLE is a trigger spray gun (DCG4000FSC). SKU 1781.

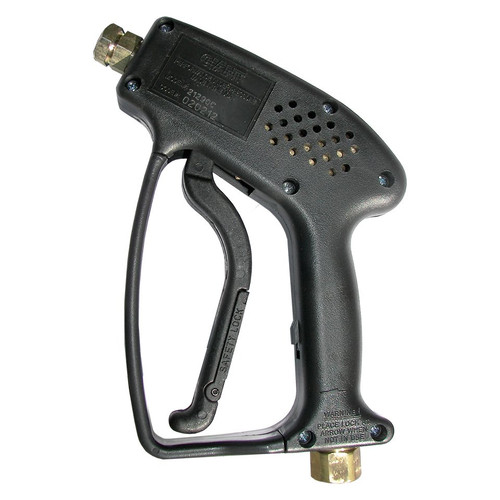

(20) * NO DROPS* GIANT 21290C TRIGGER GUN 10GPM 5K
SKU: 2341
(20) * NO DROPS* GIANT 21290C TRIGGER GUN 10GPM 5K is a trigger spray gun (Giant 21290C) rated 10 GPM at 5,000 PSI. SKU 2341.

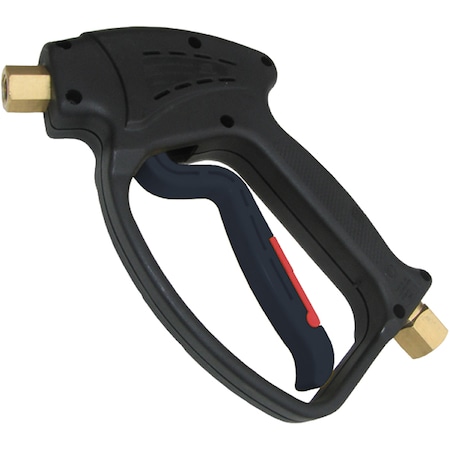

(20)DG5010 SPRAY GUN 10.5GPM 5000PSI
SKU: 6906
(20)DG5010 SPRAY GUN 10.5GPM 5000PSI is a trigger spray gun (DG5010) rated 10.5 GPM at 5,000 PSI. SKU 6906.
(20)YG4500S PA LINEAR SPRAY GUN 4500PSI
SKU: 6967
(20)YG4500S PA LINEAR SPRAY GUN 4500PSI: line (rated up to 4500 PSI), in stock now at CheapPartz with fast USA shipping.

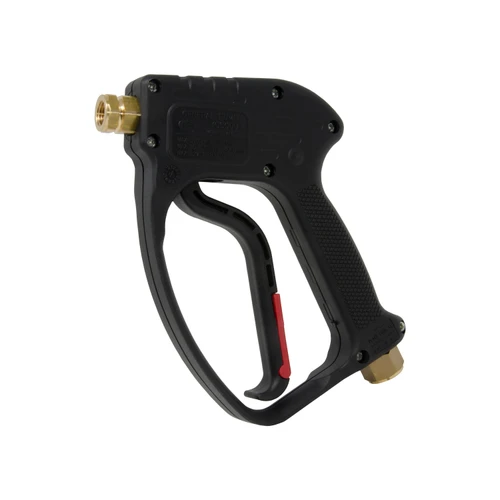

(20)YG5000 SPRAY GUN 10GPM 5000PSI
SKU: 4855
(20)YG5000 SPRAY GUN 10GPM 5000PSI is a trigger spray gun (YG5000) rated 10 GPM at 5,000 PSI. SKU 4855.

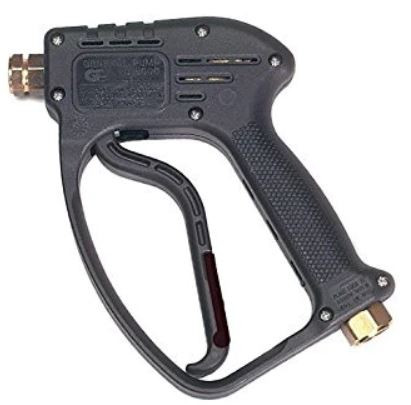

(20)YG5000C/RL30 SPRAY GUN (FOR CHLORINE)
SKU: 6418
(20)YG5000C/RL30 SPRAY GUN (FOR CHLORINE) is a trigger spray gun (YG5000C). SKU 6418.
(25)4000PSI SPRAY GUN & 24" LANCE COMBO
SKU: 6843
(25)4000PSI SPRAY GUN & 24" LANCE COMBO pairs a spray gun with a lance in one box (4,000 PSI). SKU 6843.
(25)5000PSI SPRAY GUN & 36" LANCE COMBO
SKU: 6273
(25)5000PSI SPRAY GUN & 36" LANCE COMBO pairs a spray gun with a lance in one box (5,000 PSI). SKU 6273.

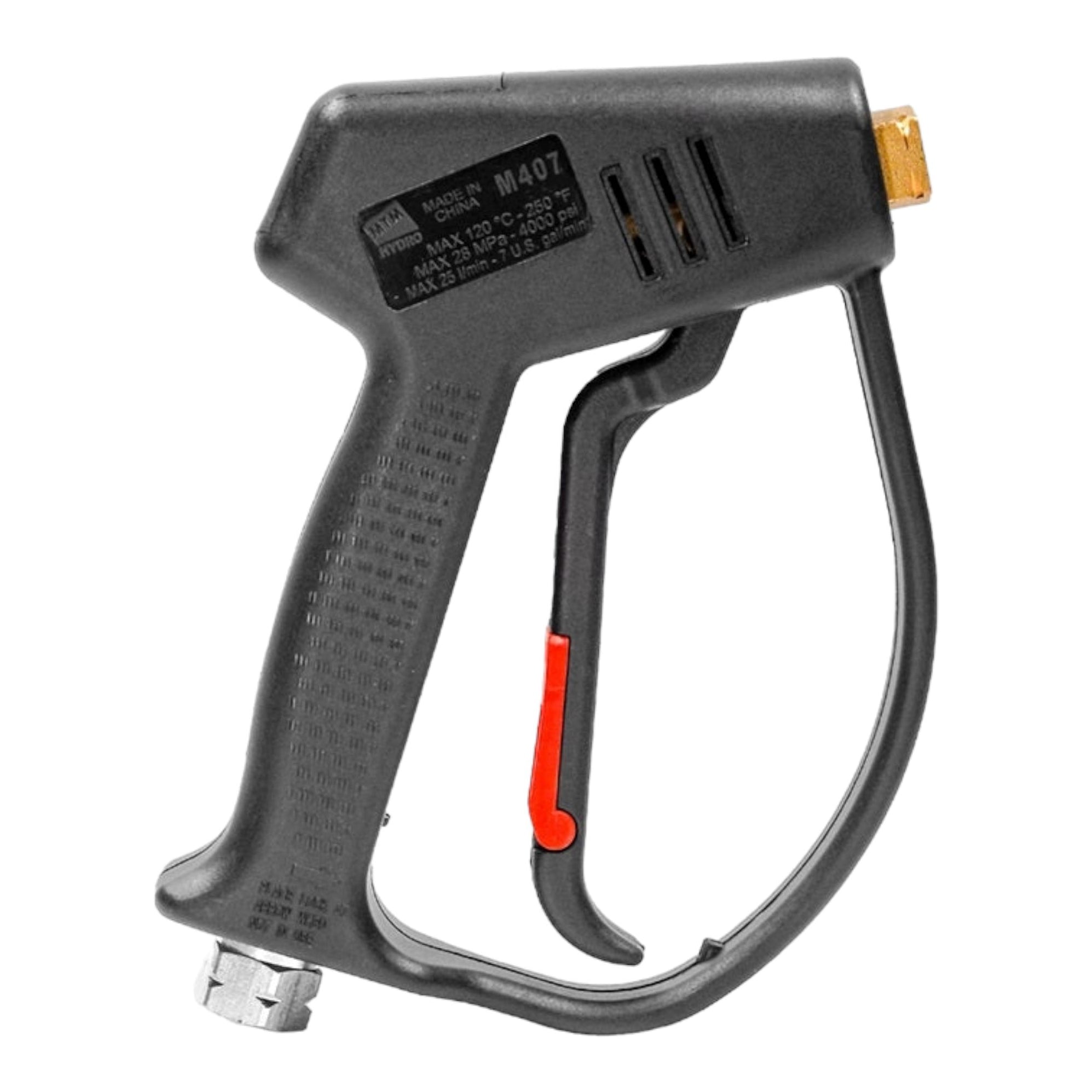

(25)MTM M407 TRIGGER GUN 7GPM 4000PSI
SKU: 6150
(25)MTM M407 TRIGGER GUN 7GPM 4000PSI is a trigger spray gun (Mtm M407) rated 7 GPM at 4,000 PSI. SKU 6150.

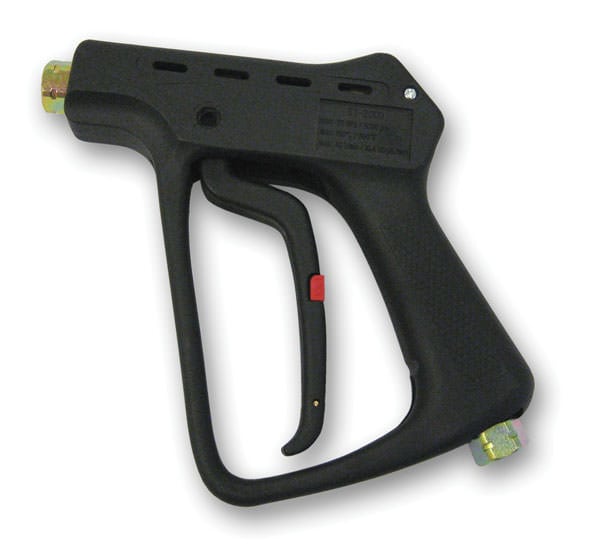

(35) SUTTNER ST-2000 TRIGGER GUN 10.4GPM 5000
SKU: 1477
(35) SUTTNER ST-2000 TRIGGER GUN 10.4GPM 5000 is a trigger spray gun (Suttner ST-2000) rated 10.4 GPM at 5,000 PSI. SKU 1477.
(50) ST-1500H OPEN GUN 12 GPM 4000 PSI
SKU: 1291
(50) ST-1500H OPEN GUN 12 GPM 4000 PSI is a trigger spray gun (ST-1500H) rated 12 GPM at 4,000 PSI. SKU 1291.

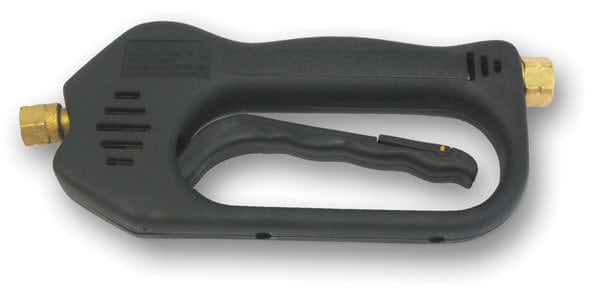

(50) ST-601 SPRAY GUN, 12 GPM/4000 PSI
SKU: 2396
(50) ST-601 SPRAY GUN, 12 GPM/4000 PSI is a trigger spray gun (ST-601) rated 12 GPM at 4,000 PSI. SKU 2396.

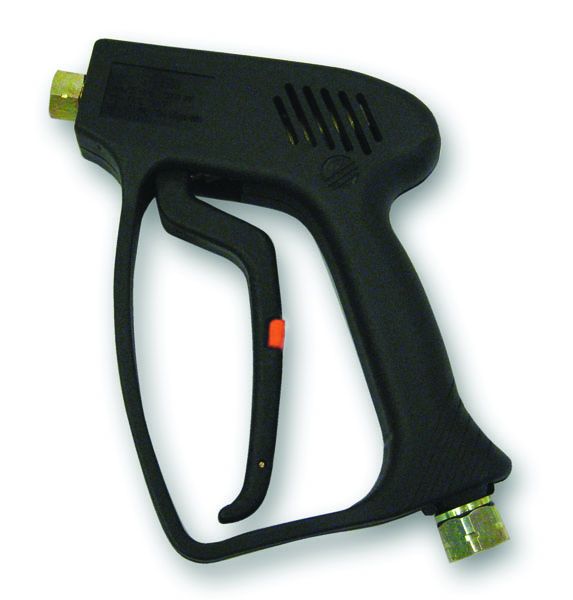

(50) SUTTNER ST-1500 (WEEP) SPRAY GUN
SKU: 2324
(50) SUTTNER ST-1500 (WEEP) SPRAY GUN is a trigger spray gun (Suttner ST-1500). SKU 2324.
(50) SUTTNER ST-1500 SPRAY GUN 10.4 GPM 5000 PSI
SKU: 1475
(50) SUTTNER ST-1500 SPRAY GUN 10.4 GPM 5000 PSI is a trigger spray gun (Suttner ST-1500) rated 10.4 GPM at 5,000 PSI. SKU 1475.

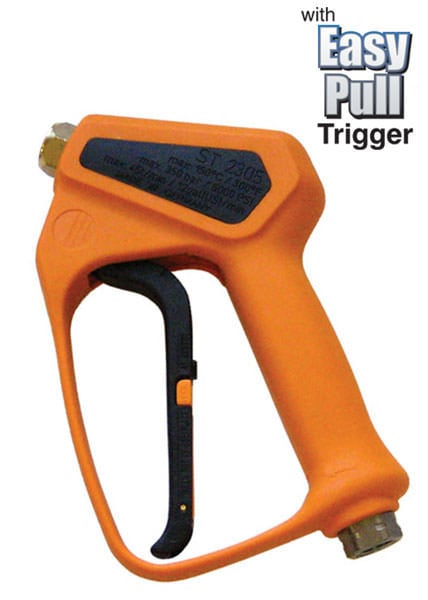

(50)ST-2305 SAFETY ORANGE GUN, 12GPM 5 000PSI EASY
SKU: 6955
(50)ST-2305 SAFETY ORANGE GUN, 12GPM 5 000PSI EASY is a trigger spray gun (ST-2305) rated 12 GPM at 0 PSI. SKU 6955.
(50)ST-2315 SPRAY GUN 12GPM 5000PSI CERAMIC BALL
SKU: 6916
(50)ST-2315 SPRAY GUN 12GPM 5000PSI CERAMIC BALL: ceramic check ball (rated up to 5000 PSI, 12 GPM flow), in stock now at CheapPartz with fast USA shipping.

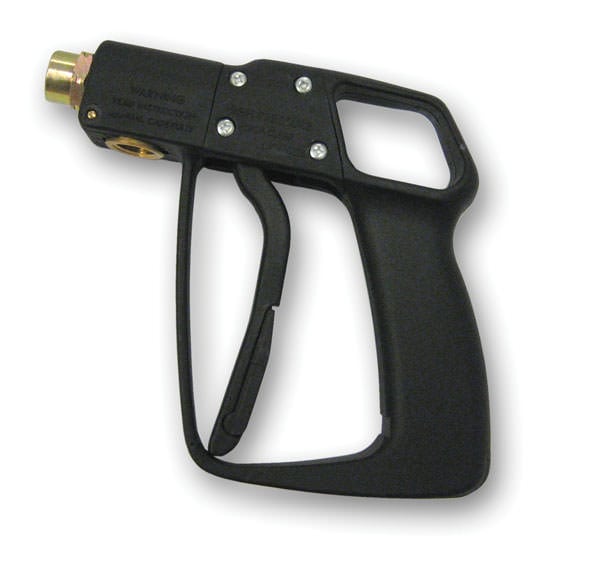

(50)ST-810 POM SPRAY GUN 8GPM 2000PSI
SKU: 6561
(50)ST-810 POM SPRAY GUN 8GPM 2000PSI is a trigger spray gun (ST-810) rated 8 GPM at 2,000 PSI. SKU 6561.

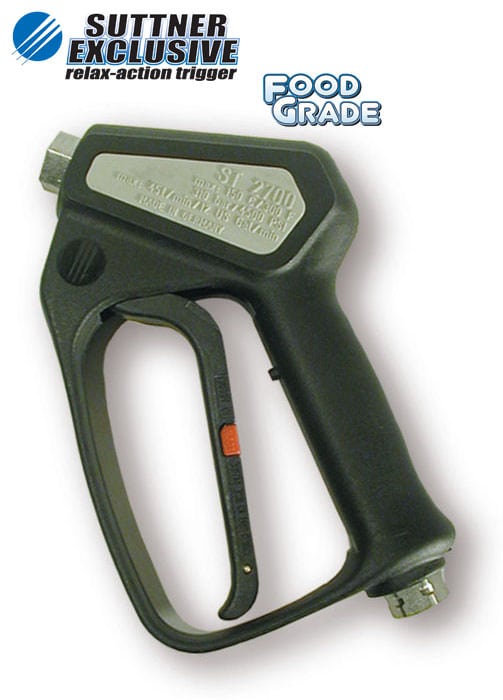

(50)ST2700 S.S.SPRAY GUN 12GPM 5000PSI RELAX ACTIO
SKU: 4730
(50)ST2700 S.S.SPRAY GUN 12GPM 5000PSI RELAX ACTIO is a trigger spray gun (ST2700) rated 12 GPM at 5,000 PSI. SKU 4730.
Spray Guns Buying Guide
Weep vs. non-weep
Weep guns bypass a small amount of water with the trigger released — the constant movement keeps the line from freezing, which is why weep designs are standard in car washes and cold-climate work. Non-weep guns shut flow off completely at the trigger, which is what most warm-weather operators want, but manufacturers warn against using non-weep guns in wintry conditions. Pick by your climate and duty cycle, not by price.
Match inlet, outlet, and ratings
The industry-standard pattern is a 3/8" FPT inlet from the hose and a 1/4" FPT outlet to the lance — confirm both before ordering, since consumer guns sometimes use different threads. Then check ratings against your pump: a 5000 PSI / 12 GPM gun (like Suttner's ST-2305 class) covers most commercial rigs, while lighter guns rated around 3000 PSI / 7 GPM suit smaller machines. Never run a gun rated below your pump's maximum pressure.
Trigger ergonomics matter on long jobs
Holding a trigger against several thousand PSI for hours causes real hand fatigue, which is why commercial guns advertise easy-pull or relax-action designs that reduce trigger force. If your crew washes all day, an ergonomic gun is a productivity purchase, not a luxury. Inlet-swivel versions are also worth considering — they let the hose rotate instead of twisting and fighting you.
Pairing the gun with a lance
The gun's 1/4" outlet is where the lance (wand) threads on, and lance length changes the job: short lances for close work and equipment, long or telescoping lances for siding, roofs, and fleet work. Match the lance's pressure rating to the gun and pump, and verify thread compatibility — an M22 or 22mm gun needs an adapter to take a standard 1/4"-threaded lance.
Spray Guns FAQ
My gun dribbles water when I release the trigger — is it broken?
If it's a weep gun, that small bypass flow is by design — it's what keeps the line from freezing. If it's a non-weep gun and it leaks or dribbles at rest, the valve or seat is worn; many commercial guns use a unitized valve cartridge that's rebuildable, otherwise it's time for a replacement gun.
Can I reuse my old gun on a bigger pump?
Only if the gun's max PSI and GPM ratings meet or exceed the new pump's output — check the gun's markings or the manufacturer's specs. An underrated gun is a safety issue, not just a durability one: running 4000 PSI through a 3000 PSI gun risks a burst at the handle.
Why does the trigger get so hard to hold?
You're holding back full system pressure with your hand, and higher GPM machines make it worse. Easy-pull and relax-action gun designs cut the required force substantially — if your current gun wears you out, the upgrade is in the gun, not your grip.
