Plugs Parts
121 products available
"Plug" covers two different fitting families in a pressure-washer shop. The first is the quick-connect plug — the male nipple half of the quick-connect set that snaps into a female socket so hoses, guns, lances, and nozzles swap without wrenches. The second is the pipe plug — a threaded cap, usually hex or Allen head, that seals unused ports on pumps, manifolds, and fittings. Both live and die by the same two details: match the size and profile exactly, and choose the right material for the service.
(200)22mm SCREW COUPLER X 3/8 QC PLUG ADAPTER
SKU: 6322
22mm screw coupler x 3/8-inch QC plug adapter, listed as SKU 6322.
(200)22mm SCREW PLUG X 1/4 FPT
SKU: 6315
22mm screw plug x 1/4-inch FPT adapter, listed as SKU 6315.
(200)22mm SCREW PLUG X 1/4 MPT
SKU: 6316
22mm screw plug x 1/4-inch MPT adapter, listed as SKU 6316.
(200)22mm SCREW PLUG X 3/8 FPT
SKU: 6313
22mm screw plug x 3/8-inch FPT adapter, listed as SKU 6313.
(200)22mm SCREW PLUG X 3/8 MPT
SKU: 6314
22mm screw plug x 3/8-inch MPT adapter, listed as SKU 6314.
(200)22mm SCREW PLUG X 3/8 QC SOCKET ADAPTER
SKU: 6323
22mm screw plug x 3/8-inch QC socket adapter, listed as SKU 6323.
(200)GARDEN HOSE QUICK COUPLE PLUG X 3/4 MGH
SKU: 1739
Quick-couple plug with 3/4-inch male garden hose thread (MGH), listed as SKU 1739.
(250)FOSTER QC PLUG 3/8" FPT STAINLESS STEEL
SKU: 7092
Foster-profile 3/8-inch FPT quick-connect plug in stainless steel, listed as SKU 7092.
(270)FOSTER QC PLUG 3/8" FPT STEEL
SKU: 7091
Foster-profile 3/8-inch FPT quick-connect plug in steel, listed as SKU 7091.
(400)QC PLUG 1/4" FNPT STAINLESS STEEL
SKU: 4602
Stainless steel 1/4-inch FNPT quick-connect plug, listed as SKU 4602.
(400)QC PLUG 1/4" FNPT STEEL PLATED
SKU: 2192
Plated-steel 1/4-inch FNPT quick-connect plug, listed as SKU 2192.
(400)QC PLUG 1/4" MNPT STAINLESS STEEL
SKU: 1627
Stainless steel 1/4-inch MNPT quick-connect plug, listed as SKU 1627.
(400)QC PLUG 1/4" MNPT STEEL PLATED
SKU: 1993
Plated-steel 1/4-inch MNPT quick-connect plug, listed as SKU 1993.
(400)QC PLUG 3/8" FNPT STAINLESS STEEL
SKU: 4959
Stainless steel 3/8-inch FNPT quick-connect plug, listed as SKU 4959.
(400)QC PLUG 3/8" MNPT STAINLESS STEEL
SKU: 4960
Stainless steel 3/8-inch MNPT quick-connect plug, listed as SKU 4960.
(400)QC PLUG 3/8" MNPT STEEL PLATED
SKU: 4780
Plated-steel 3/8-inch MNPT quick-connect plug, listed as SKU 4780.
(50)12" GUTTER CLEANER W/QC SOCKET & PLUG INSTALLE
SKU: 6642
12-inch gutter cleaner with QC socket and plug installed, listed as SKU 6642.
*SUPER CLEANING ONLY!*SNAP-TITE QC PLUG 3/8" FPT
SKU: 2986
Snap-Tite-style 3/8-inch FPT quick-disconnect plug, listed as SKU 2986.
1/4MPT 316 S.S. ALLEN HEAD PLUG
SKU: 2339
316 stainless 1/4-inch MPT Allen-head pipe plug, listed as SKU 2339.
17616 O-RING FOR CHECK VALVE PLUG
SKU: 3925
CAT Pumps 17616 o-ring (80D) for valve plugs, listed as SKU 3925.
17617 O-RING, VALVE PLUG (BUNA-N)
SKU: 5149
CAT Pumps 17617 Buna-N o-ring (90D) for valve plugs, pairs with 43851, listed as SKU 5149.
22mm SCREW PLUG X 22mm SCREW PLUG
SKU: 6427
Double-ended 22mm x 22mm screw plug for joining two 22mm fittings, listed as SKU 6427.
22mm x 15mm SCREW PLUG X 3/8 FPT
SKU: 5184
22mm x 15mm screw plug x 3/8-inch FPT adapter, listed as SKU 5184.

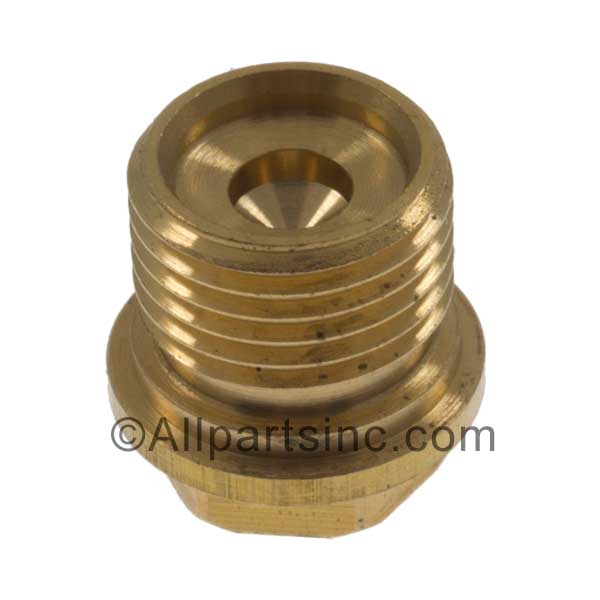

2840130 BRASS PLUG
SKU: 3892
AR AR2840130 brass valve cap for RM-series pump heads, listed as SKU 3892.
Plugs Buying Guide
QC plugs: the male half, sized to the socket
A quick-connect set is one plug (male nipple) plus one socket (female): the plug slides in, the socket's locking balls engage the plug's groove, and the spring-loaded sleeve locks it. The 1/4" profile covers guns, lances, and nozzles; the 3/8" profile covers higher-flow connections like hoses, reels, ball valves, and surface cleaners. Profiles must match exactly — a 1/4" plug will not lock into a 3/8" socket — and the common standard is the Foster industrial interchange.
Materials: brass, plated steel, stainless
Brass balances cost with good corrosion resistance in ordinary wash-water service and is the default for most QC plugs. Plated steel is harder and resists the wear of repeated insertion cycles better, making it the economical workhorse where corrosion is low. Stainless costs more but outlasts both in constant moisture, chemical injection, and soap lines — choose it when the fitting lives in harsh service.
Pipe plugs: seal the port, mind the rating
Allen-head and hex-head pipe plugs seal unused NPT ports on pumps, manifolds, and valves. Steel versions carry real pressure ratings (verify the rating on the specific listing — smaller steel plugs are commonly rated higher than larger ones), while brass suits lower-pressure ports. Use PTFE tape or liquid thread sealant on tapered threads, and don't overtighten brass — it cracks before steel does. European pumps (AR, Comet) often use BSP threads, so confirm NPT vs. BSP before ordering.
22mm adapters and OEM pump plugs
Consumer and European guns commonly use 22mm screw fittings, and ST-41-style adapters bridge them to NPT or quick-connect — stainless versions are manufacturer-rated to 5800 PSI (verify the rating on the listing). OEM pump plugs are a different animal: CAT drain and valve plugs, Comet drain plugs, and General Pump hex plugs are sized to exact pump models, and the o-ring or seal that mates with the plug should be replaced at the same time.
Engine and electrical plugs
This category also carries the plugs your engines and electric washers need: spark plugs matched to the engine model (for example, the NGK BPR6ES spec'd for Honda GX160–GX390 engines — cross-reference before substituting), oil drain plugs sized to the crankcase, and GFCI plugs for electric machines (125V/15A NEMA 5-15P and 20A NEMA 5-20P are the common ratings — verify the amperage on your unit's label). When in doubt, match the OEM part number, not the generic description.
Plugs FAQ
What's the difference between a plug and a socket?
The plug is the male nipple half that inserts; the socket is the female half with the locking balls and spring-loaded sleeve. A working quick connection is always one of each, and both halves must share the same profile size (1/4" or 3/8") to lock together.
Will a 1/4" plug fit my 3/8" socket?
No. Quick-connect profiles must match exactly — a mismatched plug won't engage the locking balls and will leak or blow apart under pressure. If your system mixes sizes, use a proper adapter rather than forcing a fit.
Do I need thread sealant on pipe plugs?
Yes on tapered pipe threads (NPT): PTFE tape or liquid thread sealant is what makes the seal, not brute force. Snug the plug, then tighten — and go easier on brass than steel, since brass cracks under the torque steel shrugs off.
