Surface Cleaners Parts
97 products available
A rotary surface cleaner trades the wand for a spinning spray bar under a disc hood, covering a fixed-width path so flatwork comes out even and streak-free in a fraction of the wand time. The rule that matters most is sizing by flow, not ambition: roughly 4 inches of cleaner diameter per GPM of pump output, so a 4 GPM machine pairs with a 16–20" cleaner and a 6 GPM machine with a 24–30" one. Most cleaners also want at least 2000 PSI on tap — ideally closer to 3000 — to spin the bar at full speed.
(10)ROTARY 3 ARM 20" SS WHIRL
SKU: 7345
(10)ROTARY 3 ARM 20" SS WHIRL is a replacement rotary arm (3-arm, for 20" housings, stainless steel). SKU 7345.
(10)ROTARY 3 ARM 24" SS WHIRL
SKU: 7329
(10)ROTARY 3 ARM 24" SS WHIRL is a replacement rotary arm (3-arm, for 24" housings, stainless steel). SKU 7329.
(12)GP 20" FLAT SURFACE CLEANER 8GPM 4000PSI
SKU: 6537
(12)GP 20" FLAT SURFACE CLEANER 8GPM 4000PSI is a 20-inch rotary surface cleaner (flat profile). SKU 6537.
(15)DELUXIFIED GROUND FORCE 24" SURF CLEAN W/CAST
SKU: 6752
(15)DELUXIFIED GROUND FORCE 24" SURF CLEAN W/CAST is a 24-inch rotary surface cleaner. SKU 6752.
(20)DELUXIFIED CLASSIC 19" SURFACE CLEANER
SKU: 6329
(20)DELUXIFIED CLASSIC 19" SURFACE CLEANER is a 19-inch rotary surface cleaner. SKU 6329.
(20)ULTRA CLEAN 16" ROTARY CLEANER
SKU: 6717
(20)ULTRA CLEAN 16" ROTARY CLEANER is a 16-inch rotary surface cleaner. SKU 6717.
(20)ULTRA CLEAN 19" ROTARY CLEANER W/WHEELS
SKU: 5473
(20)ULTRA CLEAN 19" ROTARY CLEANER W/WHEELS is a 19-inch rotary surface cleaner (rides on wheels). SKU 5473.
(25)ROTARY 2 ARM 20" SS WHIRL
SKU: 7348
(25)ROTARY 2 ARM 20" SS WHIRL is a replacement rotary arm (2-arm, for 20" housings, stainless steel). SKU 7348.
(25)ROTARY 2 ARM 24" SS WHIRL
SKU: 7328
(25)ROTARY 2 ARM 24" SS WHIRL is a replacement rotary arm (2-arm, for 24" housings, stainless steel). SKU 7328.
(25)ROTARY HEAD WHIRL A WAYS
SKU: 7324
(25)ROTARY HEAD WHIRL A WAYS is a replacement rotary head. SKU 7324.
(8)DELUXIFIED MAXIMA 36" SURFACE CLEANER W/CASTERS
SKU: 6808
(8)DELUXIFIED MAXIMA 36" SURFACE CLEANER W/CASTERS is a 36-inch rotary surface cleaner (rides on wheels). SKU 6808.
(9)DELUXIFIED BIG GUY 28" SURFACE CLEANER W/WHEELS
SKU: 6651
(9)DELUXIFIED BIG GUY 28" SURFACE CLEANER W/WHEELS is a 28-inch rotary surface cleaner (rides on wheels). SKU 6651.
(ADD GUN) HPC 21" S.S. SURFACE CLEANER
SKU: 6984
(ADD GUN) HPC 21" S.S. SKU 6984.
*D/S ONLY 80.611 UNDER CARRIAGE CLEANER 21"
SKU: 6436
*D/S ONLY 80.611 UNDER CARRIAGE CLEANER 21" (part 80.611) is a 21-inch undercarriage cleaner — rolls under vehicles to blast chassis, wheel wells, and underbodi

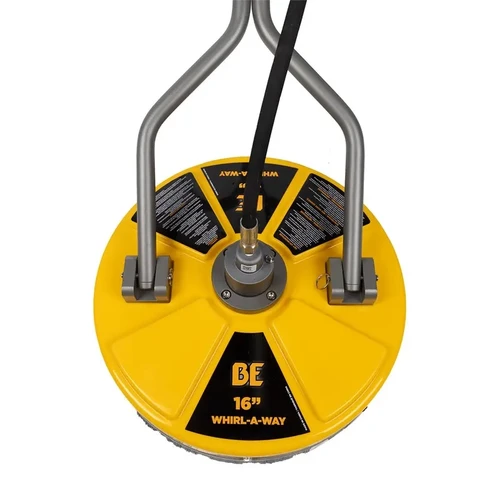

16" WHIRL-A-WAY FLOAT ABS COVER
SKU: 7354
16" WHIRL-A-WAY FLOAT ABS COVER is a replacement cover — ABS polymer, float cover. SKU 7354.
20" WHIRL-A-WAY ABS POLYMER COVER
SKU: 7166
20" WHIRL-A-WAY ABS POLYMER COVER is a replacement cover — ABS polymer. SKU 7166.
20" WHIRL-A-WAY ROTARY ARM
SKU: 7199
20" WHIRL-A-WAY ROTARY ARM is a replacement rotary arm (for 20" housings). SKU 7199.

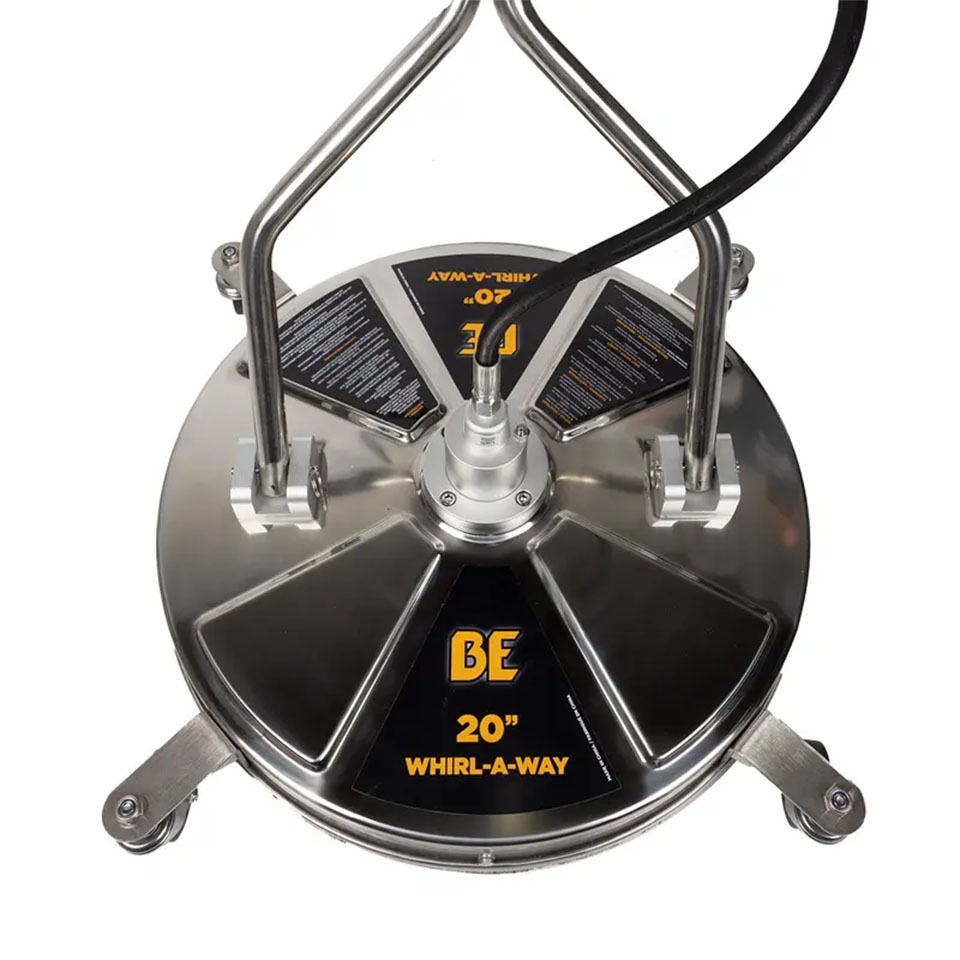

20" WHIRL-A-WAY SS
SKU: 7167
20" WHIRL-A-WAY SS is a replacement surface cleaner part (20" part). SKU 7167.
20" WHIRL-A-WAY SURFACE CLEANER
SKU: 7165
20" WHIRL-A-WAY SURFACE CLEANER is a 20-inch rotary surface cleaner (Whirl-A-Way). SKU 7165.
24" WHIRL-A-WAY SS
SKU: 7168
24" WHIRL-A-WAY SS is a replacement surface cleaner part (24" part). SKU 7168.
2530009 ROTARY ARM ASSY FOR 20" FSC
SKU: 1870
2530009 ROTARY ARM ASSY FOR 20" FSC (part 2530009) is a replacement rotary arm. SKU 1870.
2530052 ROTARY ARM ASSY FOR 18" FSC
SKU: 5407
2530052 ROTARY ARM ASSY FOR 18" FSC (part 2530052) is a replacement rotary arm. SKU 5407.
30" WHIRL-A-WAY SS
SKU: 7169
30" WHIRL-A-WAY SS is a replacement surface cleaner part (30" part). SKU 7169.
78.262 MOSMATIC 12" S.S. FLOOR & WALL SURFACE CLEA
SKU: 6930
78.262 MOSMATIC 12" S.S. SKU 6930.
Surface Cleaners Buying Guide
Size by GPM, not by driveway
Bigger is not automatically better: a 28" cleaner on a 4 GPM machine spins its bar too slowly to clean evenly, while the same machine on a properly sized 16" cleaner works efficiently. Start from your pump's data-plate GPM, apply the 4-inches-per-GPM rule, and only then pick a diameter. An oversized-for-your-flow cleaner is the single most common surface-cleaner buying mistake.
Nozzles and the spray bar
Cleaners under 24" almost always run two nozzles on one bar; larger decks can run up to four. Tip size follows your machine: divide the pump's GPM by the number of nozzles — a 4 GPM machine on a two-nozzle bar wants roughly a #2 orifice per tip (a 2502 is a 25° fan with a #2 orifice). Keep tips clean and matched; a clogged or mismatched tip makes the bar vibrate and stripe.
The swivel is the wear item
The rotary swivel that feeds the spinning bar is what wears out, and it tells you when: check the weep holes on the bottom of the swivel periodically. A slow seep is normal; water shooting out means the swivel seals are done and it's time for a rebuild kit or replacement. Stainless housings and commercial-grade swivels cost more up front but outlast plastic homeowner bodies under daily use, and casters or wheels keep passes consistent on uneven concrete.
Undercarriage cleaners and water brooms
Low-profile undercarriage cleaners (Hurricane-style) roll under vehicles to blast chassis, wheel wells, and underbodies, and flipper designs rotate to double as flat-surface cleaners. Water brooms are multi-nozzle bars aimed at wide rinsing rather than aggressive cleaning. Both are specialty tools — verify the inlet connection and the GPM/PSI ratings against your machine before ordering, since their plumbing differs from a standard rotary deck.
Surface Cleaners FAQ
Why is my surface cleaner leaving stripes?
Striping usually means the bar isn't spinning at full speed — either the cleaner is oversized for your pump's GPM, or one tip is clogged or worn so the bar spins unevenly. Slow your walking pace, clean or replace the tips, and confirm the nozzle sizing matches your GPM divided by nozzle count.
Can I use a rotary surface cleaner on a wood deck?
With caution. Rotary cleaners concentrate a lot of energy in one path and can etch or fur soft wood, and you should never let the machine sit stationary on a soft surface. Keep it moving at a steady pace, and for delicate wood many pros prefer a wide fan tip on a wand instead.
How do I know the swivel needs rebuilding?
Watch the weep holes on the bottom of the swivel: slow seepage is normal, but water shooting out under pressure means the seals have failed. Vibration that doesn't go away after cleaning the tips is another sign the swivel bearings are worn.
